Overview

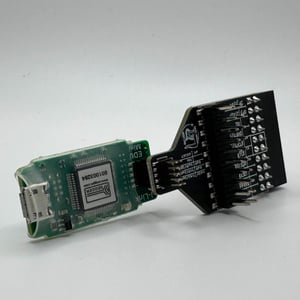

The Dirt Cheap JTAG Adapter is designed for adapting common 2x10/2.54mm and 2x5/1.27mm JTAG/SWD connectors with one another. The adapter connects directly to both SEGGER J-Link AND SEGGER J-Link Mini models and provides easily accessible 2x10 and 2x5 headers.

For those of you who have modded your J-Link to add 3.3v output , pin 2 is connected across the board and separate from GND, so this adapter will work just fine for you.
